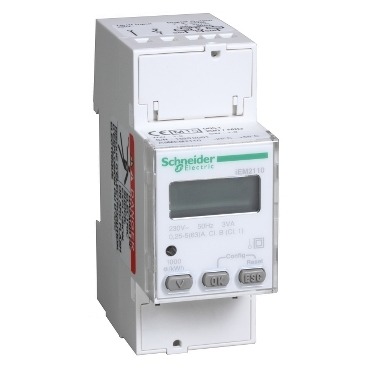

A9MEM2110 Product picture Schneider Electric modular single phase power meter iEM2110 – 230V – 63A with pulse – MID A9MEM2110

Key Features & Specs:

• Series: Acti 9 iEM2100
• Model: A9MEM2110 (iEM2110) — single‑phase DIN‑rail energy meter
• Rated Voltage: 230 VAC (184–276 VAC, 50/60 Hz)
• Current Capability: Direct connection up to 63 A, sampling at 32 samples per cycle
• Display: 8-character LCD with red LED accuracy indicator
• Accuracy Class: Class 1 (active energy, IEC 62053‑21), certified MID compliant
• Outputs: 2 pulse outputs (3–33 VAC @ 90 mA or 5–70 VDC @ 90 mA; 30–100 ms pulses)
• Mounting: 36 mm width, DIN‑rail clip-on; enclosure IP40 front / IP20 casing
• Dimensions & Weight: Approx. 36 × 90 × 70 mm, 175 g
• Standards & Certifications: IEC 62052‑31, IEC 62053‑21/23, EN 50470‑1/3, CE, UL‑94 V0, MID certified
• Operating Conditions: −25…55 °C, humidity 0–95 % at 55 °C
