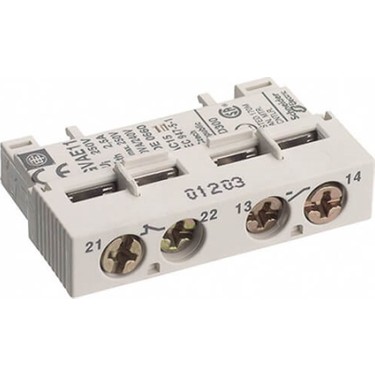

GVAE11 Schneider TeSys GV2 & GV3 – auxiliary contact – 1 NO + 1 NC
| Product Name | GVAE11 |
| Delivery Time | PLEASE ASK |
| PACKAGE QTY | 1 |
| Unit | PCS |
| Category | Details |
|---|
| Main |
| Range | TeSys |
| Device Short Name | GVAE |
| Product/Component Type | Auxiliary Contact Block |
| Product Compatibility | GV2P, GV2RT, GV2ME, GV3L, GV2LE, GV3P, GV2L |
| Mounting Location | Front side |
| Pole Contact Composition | 1 NO + 1 NC |
| Quantity per Set | Set of 10 |
| Complementary |
| [Ui] Rated Insulation Voltage | 300 V (UL 508, CSA C22.2 No 14), 250 V (IEC 60947-1) |
| [Ue] Rated Operational Voltage | 24…240 V AC, 24…60 V DC |
| [Ith] Thermal Current | 2.5 A |
| Protection Type | GG fuse 10 A, GB2CB06 circuit breaker 10 A |
| Mechanical Durability | 100000 cycles |
| Min Switching Current | 5 mA |
| Min Switching Voltage | 17 V |
| Rated Operational Power (AC-15) | 120 VA at 110–120 V, 120 VA at 230–240 V, 48 VA at 24 V, 60 VA at 48 V |
| Rated Operational Power (DC-13) | 24 W at 24 V, 15 W at 48 V, 9 W at 60 V |
| Tightening Torque | 1.4 N·m (screw clamp terminals) |
| Dimensions (HxWxD) | 11 mm x 45 mm x 29 mm |
| Net Weight | 0.02 kg |
| Environment |
| Environmental Characteristic | Normal environment |
| Packing Units |
| Package 1 Type | PCE |
| Units in Package 1 | 1 |
| Weight / Height / Width / Length | 18 g / 1.6 cm / 5.1 cm / 8.3 cm |
| Package 2 Type | BAG |
| Units in Package 2 | 1 |
| Weight / Height / Width / Length | 18 g / 1.6 cm / 5.1 cm / 8.3 cm |
| Package 3 Type | BB1 |
| Units in Package 3 | 10 |
| Weight / Height / Width / Length | 210 g / 12 cm / 6 cm / 7 cm |
| Offer Sustainability |
| Sustainable Offer Status | Green Premium product |
| REACh Regulation | REACh Declaration |
| REACh SVHC | Free of SVHC |
| EU RoHS Directive | Compliant |
| EU RoHS Declaration | Available |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | Yes |
| China RoHS Regulation | China RoHS Declaration |
| Environmental Disclosure | Product Environmental Profile |
| WEEE Compliance | Must follow EU waste collection rules; do not dispose in regular bins |
| California Proposition 65 | WARNING: Contains Lead and compounds—may cause cancer/reproductive harm |
| Contractual Warranty |
| Warranty | 18 months |
