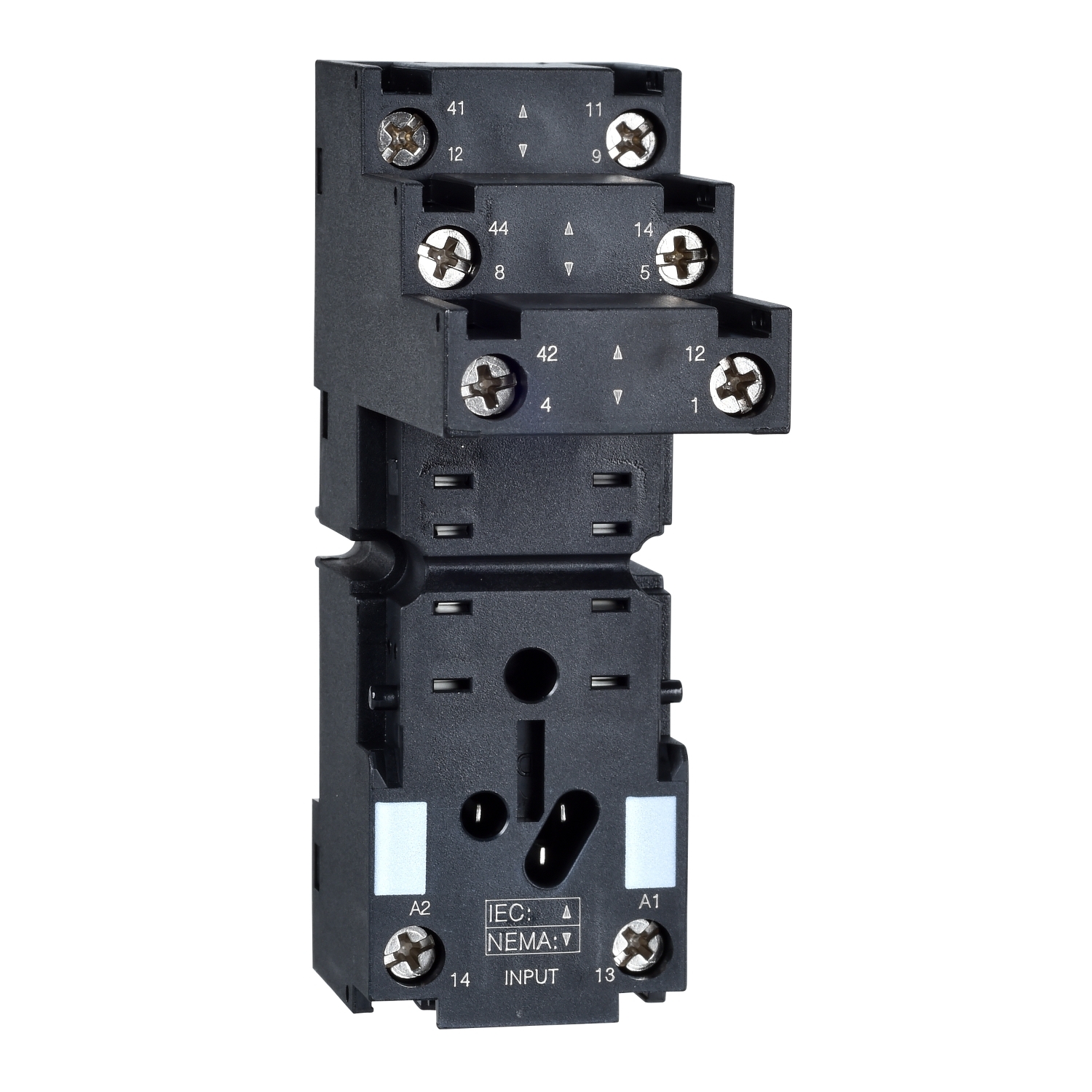

Harmony, Socket, for RXM2 relays, screw connectors, separate contact, RXZE2S108M, Schneider

Main
range of product	Harmony Electromechanical Relays Harmony Timer Relays
product or component type	Socket
contact terminal arrangement	Separate
product compatibility	Plug-in relay RXM with 2 C/O contact Plug-in relay REXL with 2 C/O contact
shape of pin	Flat
device short name	RXZ
sale per indivisible quantity	10

Complementary
[Ith] conventional free air thermal current	12 A
[Ue] rated operational voltage	< 250 V
connections – terminals	Connector, 2 x 0.5…2 x 1.5 mm² (AWG 20…AWG 16) solid without cable end Connector, 1 x 0.25…1 x 2.5 mm² (AWG 22…AWG 17) flexible with cable end Connector, 1 x 0.5…1 x 2.5 mm² (AWG 22…AWG 14) flexible with cable end Connector, 2 x 0.25…2 x 1 mm² (AWG 20…AWG 14) solid without cable end
tightening torque	< 1 N.m for M3 screw(s)
fixing mode	By screw (panel) Clip-on (35 mm symmetrical DIN rail)
marking	CE
width	27 mm
net weight	0.058 kg

Environment
standards	IEC 61984
product certifications	CSA Lloyd’s UL
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-40…55 °C
IP degree of protection	IP20 conforming to EN/IEC 60529
dielectric strength	2500 V

Contractual warranty
Warranty	18 months
