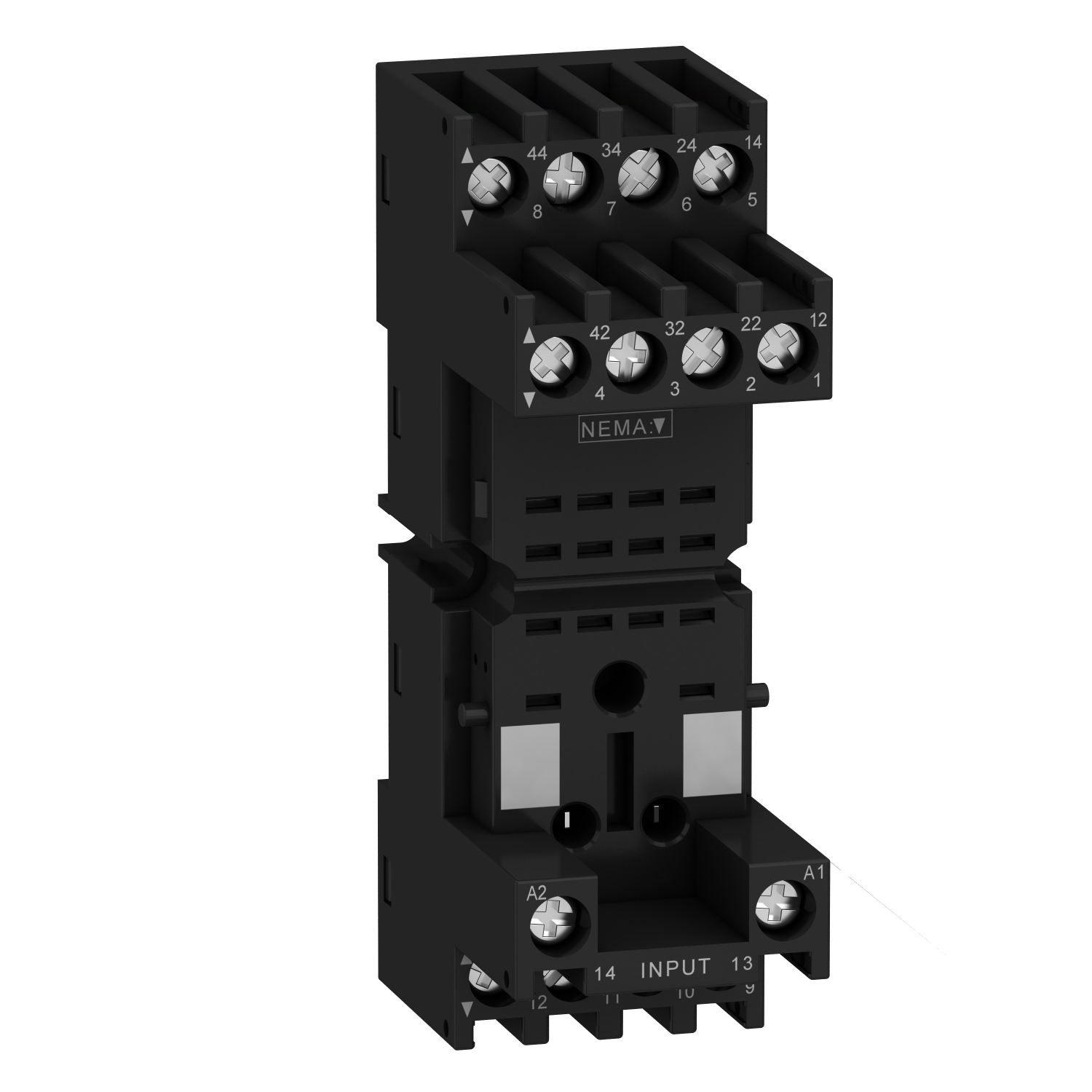

Harmony, Socket, for RXM2/RXM4 relays, screw connectors, mixed contact

Main
range of product	Harmony Electromechanical Relays Harmony Timer Relays
product or component type	Socket
contact terminal arrangement	Mixed
product compatibility	Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact
shape of pin	Flat
device short name	RXZ
sale per indivisible quantity	10

Complementary
[Ith] conventional free air thermal current	10 A
[Ue] rated operational voltage	< 250 V
connections – terminals	Connector, 1 x 0.25…1 x 2.5 mm² (AWG 22…AWG 14) flexible with cable end Connector, 2 x 0.25…2 x 1 mm² (AWG 22…AWG 17) flexible with cable end Connector, 1 x 0.5…1 x 2.5 mm² (AWG 20…AWG 14) solid without cable end Connector, 2 x 0.5…2 x 1.5 mm² (AWG 20…AWG 16) solid without cable end
tightening torque	< 1 N.m for M3 screw(s)
fixing mode	By screw (panel) Clip-on (35 mm symmetrical DIN rail)
marking	CE
width	27 mm
net weight	0.056 kg

Environment
standards	IEC 61984
product certifications	UL CSA Lloyd’s
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-40…55 °C
IP degree of protection	IP20 conforming to EN/IEC 60529
dielectric strength	2500 V

Contractual warranty
Warranty	18 months
